E3X-MDA

CAD-bibliotek

Features

2-in-1 digital fiber amplifier

E3X-MDA incorporates 2 digital fiber amplifiers in one slimline housing. For applications requiring the detection of two objects simultanously the E3X-MDA provides an easy to use operation saving space and set-up time.

Two digital amplifiers in one slimline housing
Twin output models – on/off or area (between two threshold values)
Signal comparison functions (AND, OR, etc.)

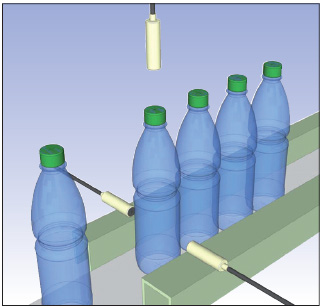

Logic operations without PLC

The AND and OR functionality for the two fiber channels allows simple signal processing without the need for a PLC. This allows the addition of sensor checks to machines without reprogramming the PLC.

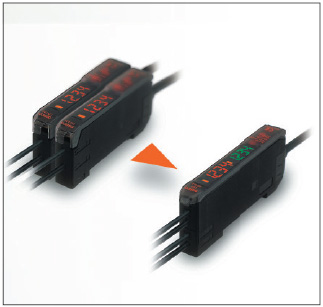

Space & cost reduction

The 2 in 1 amplifier replaces two standard amplifiers reducing space requirements and hardware cost.

Specifications & ordering info

Ordering information

Item	Functions	Order code
Item	Functions	NPN output	PNP output
Pre-wired	AND/OR output	E3X-MDA11	E3X-MDA41
Fiber amplifier connector1	AND/OR output	E3X-MDA6	E3X-MDA8

Fiber amplifier connectors

Type	Comment	Order code
Fiber amplifier connector	2 m PVC cable	E3X-CN21
	30 cm PVC cable with M12 plug connector (4 pin)	E3X-CN21-M1J 0.3M
	30 cm PVC cable with M8 plug connector (4 pin)	E3X-CN21-M3J-2 0.3M

Specifications

Item		E3X-MDA
Light source (wave length)		Red LED (650 nm)
Power supply voltage		12 to 24 VDC±10%, ripple (p-p) 10% max.
Protective circuits		Power supply reverse polarity protection, output short-circuit protection, mutual interference prevention
Response time	Super-high-speed mode	130 µs for operation and reset respectively
	Standard mode	1 ms for operation and reset respectively
	High-resolution mode	4 ms for operation and reset respectively
Sensitivity setting		Teaching and digital up/down keys
Functions	Power tuning	Light emission power and reception gain, digital control method
	Timer function	Select from OFF-delay, ON-delay, or one-shot timer. 1 ms to 5 s (1 to 20 ms set in 1-ms increments, 20 to 200 ms set in 10-ms increments, 200 ms to 1 s set in 100-ms increments, and 1 to 5 s set in 1 s-increments)
	I/O settings	Output setting (select from channel 2 output, AND, OR, leading edge sync, falling edge sync, or differential output)
Digital displays		Select from the following: Incident level for channel 1 + incident level for channel 2, Incident level + threshold, incident level percentage + threshold, incident light peak level + no incident light bottom level, minimum incident light peak level + maximum no incident light bottom level, long bar display, incident level + peak hold, incident level + channel
Degree of protection		IEC 60529 IP50 (with protective cover attached)
