LVS-958x Series
LVS-958x Series Desktop Barcode Verifier
The LVS-958x series is a high-performance handheld solution for off-line barcode verification to ISO/IEC and MIL-STD-130N standards. Featuring a high-resolution 5.0 megapixel camera, the LVS-958x reads and analyses linear (1D) and two-dimensional (2D) barcodes up to 76.19 mm wide and up to 57.15 mm tall. The LVS-958x verifies multiple barcode types, including any combination of linear, 2D (Data Matrix, QR Code, and Aztec Code), and stacked linear (PDF 417, Micro PDF and Composite Codes). Powered by a 3.0 m USB 2.0 cable, the LVS-9580 verifies barcode labels and direct part marks (DPM) located on a wide range of surfaces including corrugated cardboard boxes, shipping containers, plastics, composites, and metal surfaces.
- Verify a broad variety of direct part marks as well as 1D and 2D printed barcodes with a single model
- Software automatically selects best lighting performance from integrated red or white dome and 30° angle lighting
- Validates printed barcodes to ISO/IEC, ANSI, GS1, and UDI print quality standards
- Validates direct part marks (DPM) to ISO, MIL-STD-130, and GS1 standards
- Software options include multi-sector for verification of multiple barcodes and GS1 AI content check
- 21 CFR Part 11 compliant-ready
- Supports 15 languages with the ability to add more
- Export verification reports to Excel or SQL database
- Manage operator permissions using LVS-95XX software or using Microsoft Active Directory
- Includes NIST-Traceable Calibrated Conformance Standard Test Card for calibrating the system
Specifications & ordering info
| Produkt | Field of view - horizontal | Field of view - vertical | Decoder type | Application Standards | Minimum X - Dimension 2D | Minimum X - Dimension 1D | Illumination | Description | |
|---|---|---|---|---|---|---|---|---|---|
|
|
76 mm | 57 mm | 1D, ISO Verification | AIAG/JAMA/JAPIA/Odette, ALDI, DHL, FPMAJ, French CIP, GS1 (NTIN), GS1 General Specifications, HDMA Guidelines, Health Industry Barcode (HIBC), ISO/IEC 15416, ISO/IEC 15426, Japan Codabar, Laetus Pharmacode, Laetus Standard, MIL-STD-130N with Change 1, Miniature Pharmacode, POSTNET, Japan Post, PZN (German Pharmacode), Pharmacy Product Number (PPN), Postal (EIB, USPS IMB/Code 128, Mailmark) | 0.10 mm | Red Dome | LVS-9580 Handheld, 1D Barcode Verification |
|
|
|
|
76 mm | 57 mm | 2D, ISO Verification | AIAG/JAMA/JAPIA/Odette, ALDI, DHL, FPMAJ, French CIP, GS1 (NTIN), GS1 General Specifications, HDMA Guidelines, Health Industry Barcode (HIBC), ISO/IEC 15415, ISO/IEC 15426, Japan Codabar, Laetus Pharmacode, Laetus Standard, MIL-STD-130N with Change 1, Miniature Pharmacode, POSTNET, Japan Post, PZN (German Pharmacode), Pharmacy Product Number (PPN), Postal (EIB, USPS IMB/Code 128, Mailmark) | 0.15 mm | Red Dome | LVS-9580 Handheld, 2D Barcode Verification |
|
|
|
|
76 mm | 57 mm | 1D, 2D, ISO Verification | AIAG/JAMA/JAPIA/Odette, ALDI, DHL, FPMAJ, French CIP, GS1 (NTIN), GS1 General Specifications, HDMA Guidelines, Health Industry Barcode (HIBC), ISO/IEC 15415, ISO/IEC 15416, ISO/IEC 15426, Japan Codabar, Laetus Pharmacode, Laetus Standard, MIL-STD-130N with Change 1, Miniature Pharmacode, POSTNET, Japan Post, Pharmacy Product Number (PPN), Postal (EIB, USPS IMB/Code 128, Mailmark) | 0.15 mm | 0.10 mm | Red Dome | LVS-9580 Handheld, 1D & 2D Barcode Verification |
|
|
|
44 mm | 44 mm | 1D, 2D, DPM, ISO Verification | AIAG/JAMA/JAPIA/Odette, ALDI, DHL, FPMAJ, French CIP, GS1 (NTIN), GS1 General Specifications, HDMA Guidelines, Health Industry Barcode (HIBC), ISO/IEC 15415, ISO/IEC 15416, ISO/IEC 15426, Japan Codabar, Laetus Pharmacode, Laetus Standard, MIL-STD-130N with Change 1, Miniature Pharmacode, POSTNET, Japan Post, Pharmacy Product Number (PPN), Postal (EIB, USPS IMB/Code 128, Mailmark) | 0.15 mm | 0.10 mm | Red Dome | LVS-9580 Handheld, 1D, 2D & DPM Barcode Verification |
|
|
|
44 mm | 44 mm | 1D, 2D, DPM, ISO Verification | AIAG/JAMA/JAPIA/Odette, ALDI, DHL, FPMAJ, French CIP, GS1 (NTIN), GS1 General Specifications, HDMA Guidelines, Health Industry Barcode (HIBC), ISO/IEC 15415, ISO/IEC 15416, ISO/IEC 15426, Japan Codabar, Laetus Pharmacode, Laetus Standard, MIL-STD-130N with Change 1, Miniature Pharmacode, POSTNET, Japan Post, Pharmacy Product Number (PPN), Postal (EIB, USPS IMB/Code 128, Mailmark) | 0.05 mm | Red Dome | LVS-9580 Handheld, 1D, 2D & DPM high density |
|
|
|
|
44 mm | 44 mm | 1D, 2D, DPM, ISO Verification | AIAG/JAMA/JAPIA/Odette, ALDI, DHL, FPMAJ, French CIP, GS1 (NTIN), GS1 General Specifications, HDMA Guidelines, Health Industry Barcode (HIBC), ISO/IEC 15415, ISO/IEC 15416, ISO/IEC 29158, Japan Codabar, Laetus Pharmacode, Laetus Standard, MIL-STD-130N with Change 1, Miniature Pharmacode, POSTNET, Japan Post, Pharmacy Product Number (PPN), Postal (EIB, USPS IMB/Code 128, Mailmark) | 0.15 mm | 0.10 mm | 30 Degree, red dome, white dome | LVS-9585 Handheld, 1D, 2D & DPM Dome and 30 degree lighting |
|
|
|
33 mm | 25 mm | 1D, 2D, DPM, ISO Verification | AIAG/JAMA/JAPIA/Odette, ALDI, DHL, FPMAJ, French CIP, GS1 (NTIN), GS1 General Specifications, HDMA Guidelines, Health Industry Barcode (HIBC), ISO/IEC 15415, ISO/IEC 15416, ISO/IEC 29158, Japan Codabar, Laetus Pharmacode, Laetus Standard, MIL-STD-130N with Change 1, Miniature Pharmacode, POSTNET, Japan Post, Pharmacy Product Number (PPN), Postal (EIB, USPS IMB/Code 128, Mailmark) | 0.05 mm | 30 Degree, red dome, white dome | LVS-9585 Handheld, 1D, 2D & DPM Barcode Verification, high density |
|
No results found. Please expand your filter selection.
Reset all filters
Need assistance?
We’re here to help! Reach out, and our specialists will assist you in finding the best solution for your business.
Kontakta mig
Contact us
Kontakta mig LVS-958x Series
Tack för din förfrågan. Vi återkommer inom kort.
Vi har tekniska problem. Din formulär har inte varit framgångsrik. Vi ber om ursäkt och försök igen senare.
Kontakta mig
Kontakta mig
Begär offert
Begär offert
Offert för LVS-958x Series
Fyll i alla obligatoriska fält. Vänligen fyll i alla fält markerade med *. Dina personliga uppgifter behandlas konfidentiellt.
Tack för din offertförfrågan. Vi återkommer med önskad information inom kort.
Vi har tekniska problem. Din formulär har inte varit framgångsrik. Vi ber om ursäkt och försök igen senare.
Begär offert
Begär offert

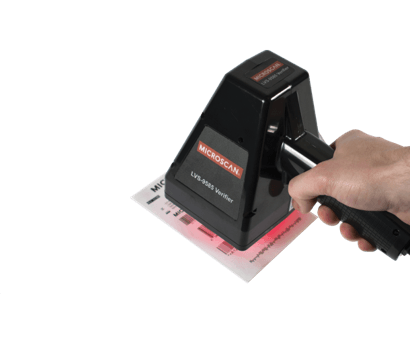

The LVS-9580 and LVS-9585 Series are USB plug-and-play portable barcode verifiers designed for fast, accurate, and standards-compliant code grading wherever it’s needed. Their lightweight, handheld format makes them ideal for use on the production floor or in inspection areas where mobility and flexibility are essential.
Available in both HD (High-Definition) models for small or high-density symbols and DPM (Direct Part Mark) versions for challenging surfaces and industrial marking methods, the series delivers reliable, repeatable verification performance across a wide range of applications.
The LVS-9580 and LVS-9585 Series verifiers are designed to fully comply with the key ISO/IEC standards required for accurate and repeatable barcode quality assessment. They meet ISO/IEC 15415 for 2D symbol grading, ISO/IEC 15416 for linear barcodes, ISO/IEC 29158 for DPM verification, and ISO/IEC 15418 for data structure requirements.
The devices also conform to the verifier performance standards ISO/IEC 15426-1 and ISO/IEC 15426-2, ensuring consistent, reliable grading results. With support for all relevant ISO/IEC symbology specifications, the LVS-9580 and LVS-9585 deliver dependable, standards-based verification across a wide range of industries and applications.
Features
In-depth Analysis

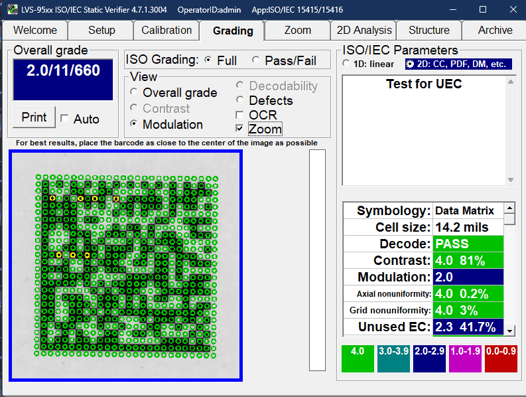

The system delivers clear, colour-coded indications to show exactly where any issues appear in the barcode, so operators can quickly locate and resolve critical areas. Individual parts of the code can be analysed in greater detail to define corrective measures, while built-in online guidance supports users at every step of the evaluation workflow.
Multiple verification modes

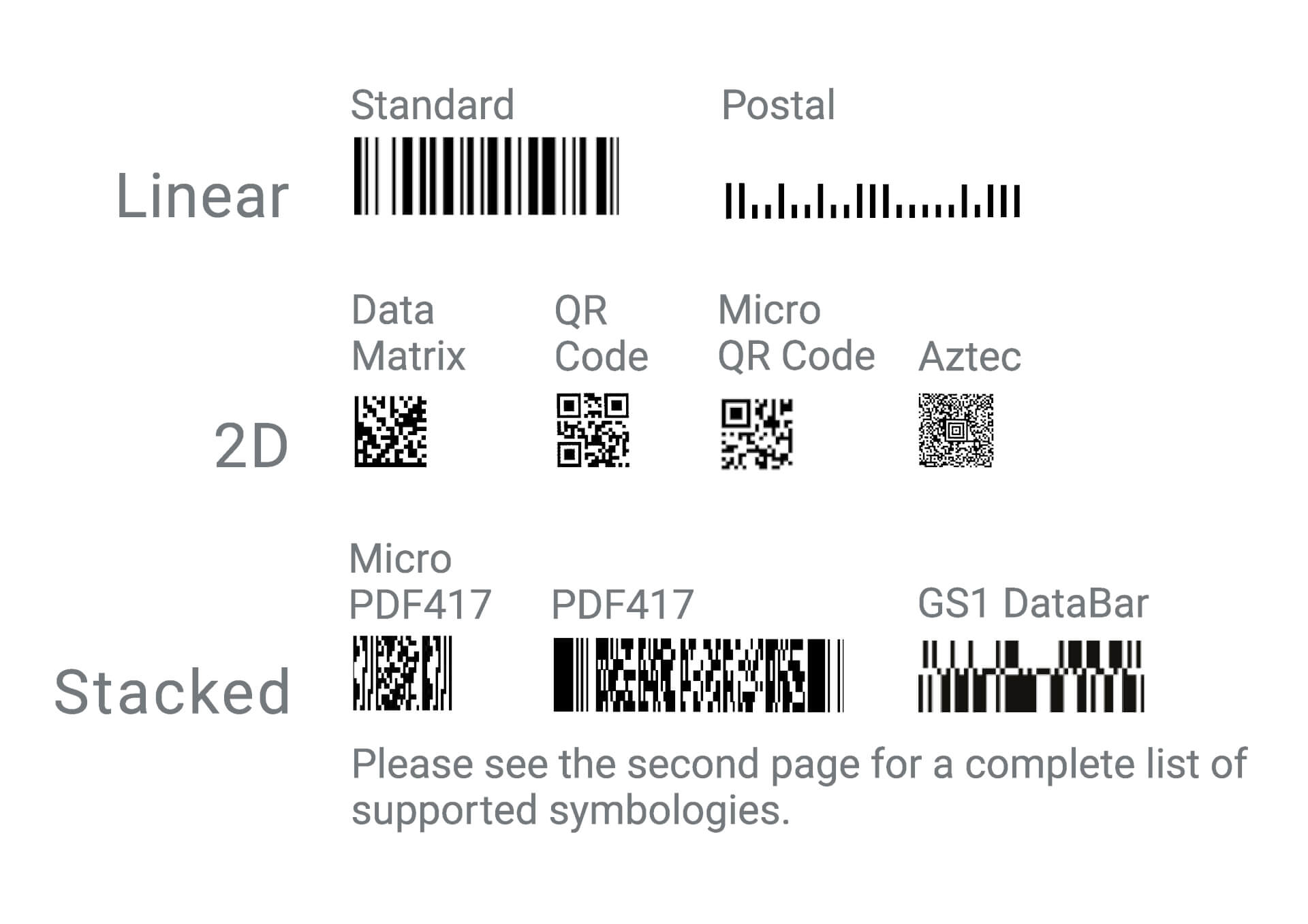

The system inspects several barcodes on a single label in one pass, handling any combination of linear codes, 2D symbols (such as Data Matrix, QR Code, and Aztec), and stacked linear formats like PDF417, MicroPDF, and composite symbols, all within a single field of view.
